How do you separate a neutral subpanel from a ground?
James Austin
Published Oct 15, 2026
Answer

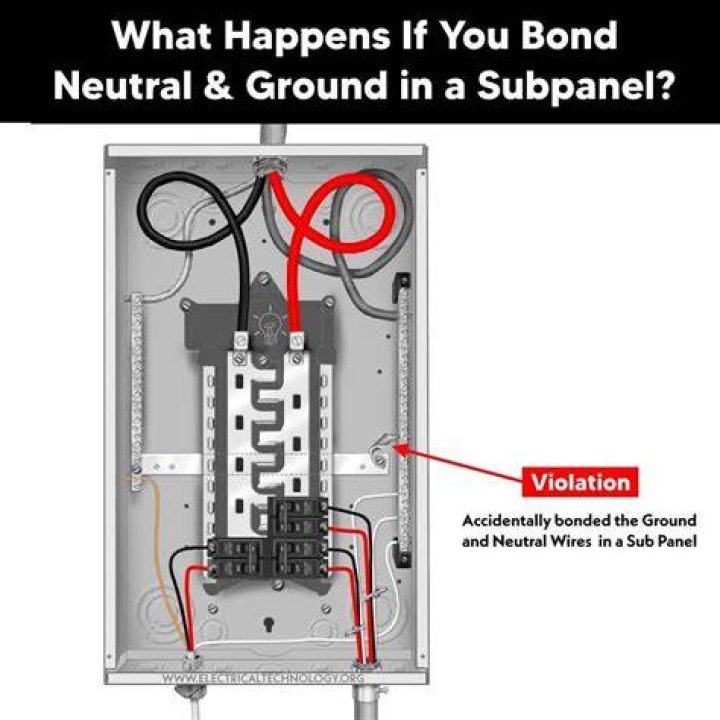

If we connect the ground wire to the neutral wire in the sub-panel, current will flow on both the neutral wire and the ground wire at the same time. Keeping the ground wires and the neutral wires separate will prevent return currents from flowing via the ground wires and back to the main panel, which is a dangerous situation.
Why do you separate grounds from neutrals in a subpanel if you’re going to use them together?
The neutral wire is responsible for carrying current. Bonding the neutral to the ground in a subpanel, on the other hand, will enable electricity to flow back to the main electrical panel via the ground wire. Bonding the neutral to the ground in a subpanel, on the other hand, will enable electricity to flow back to the main electrical panel via the ground wire.
Is it necessary to ground subpanels in the same way?
At a sub-panel, the neutral and ground must not be linked together. They should only be bonded at the main service panel, according to the manufacturer. The ground wire from the home must be linked to the ground wire on the sub-panel in order for it to function. As a detachable structure, ground rods are also needed by code and should be connected to the sub-grounding panel’s system to ensure proper operation.
On this case, how do you distinguish between neutral and ground in the main panel?
Providing that the main service panel is in the same location as where the grounded (neutral) wire is attached to the grounding electrode, there should be no issue with mixing grounds and neutrals on the same bus bar in this situation (as long as there is an appropriate number of conductors terminated under each lug).
Is it possible to connect neutral to ground?
No, the neutral and ground should never be connected in the same circuit. This is incorrect, and it has the potential to be harmful. Since the neutral is connected to the circuit when you put anything into the outlet, it will remain live until the circuit is closed. If the ground is connected to the neutral, the ground of the application will likewise be live as a result of the wiring configuration.
There were 31 related questions and answers found.
What is the proper way to ground a subpanel?
Rule number three: The terminal bar for the equipment ground (often referred to as a ground bus) in a subpanel should be bonded (electrically linked) to the enclosure in order for the subpanel to function properly. The purpose of this regulation is to ensure that in the event of a ground fault to the subpanel enclosure, there is a route to the service panel and the transformer available.
Is it possible to have neutral and ground on the same bus bar?
Neutrals and grounds are authorised to share the same bus bar; however, only one neutral wire is permitted to be run under a screw. Aside from the screw, there are no other neutrals or grounds allowed to be involved.
What is the best way to operate a subpanel from the main panel?
Install the cable for the new circuits into the subpanel and secure it with a cable clamp. Route wires around the perimeter of each circuit, connecting the ground wire to the ground bus bar, the white wire to the neutral bus bar, and the hot wire to a circuit breaker.
Can you tell me whether there is a continuity between neutral and ground?
As long as the neutral and ground are linked to the neutral bar in the panel, a dead receptacle with no hotness visible will normally maintain continuity between neutral and ground (provided the ground is OK). But a continuity tester that is located downstream of a tripped GFI receptacle should not display continuity.
How do you determine the size of a subpanel?
Area of Coverage for Subpanels Each room’s square footage may be calculated by taking measurements of its length and breadth and multiplying those measurements together. To get the overall square footage, add up the square footage of all of the rooms. The entire square footage should be multiplied by three (watts) to complete the computation.
What is the purpose of bonding neutral and ground?
Typically, the neutral is grounded (earthed) via a link formed between the neutral bar and the earth bar (see Figure 1). Since there is a link between neutral and earth, any failure that occurs from phase to earth may generate enough current flow to “trigger” the overcurrent safety device on the circuit.
Is neutral the same as the word “ground”?
The physical ground, often known as the earth, is referred to as the ground. The star point of a STAR linked load is referred to as the neutral point. This does not apply to loads that are linked through DELTA.
What is the proper way to ground a service panel?
The grounding electrode conductor, often known as the GEC, serves as a second point of ground connection. When the neutral/ground bus bar is connected to a ground rod driven into the soil near the service panel, or to metal rebar buried in the home’s foundation, it is referred to as a bare copper wire.
I’m curious what happens if you link neutral to the earth.
It is possible to cause a ground fault circuit interrupter (GFCI) to trip if you link the neutral and ground conductors together. The GFCI compares the current flowing through the hot wire to the current flowing through the neutral wire. This device cuts the circuit if there is any difference between them (for example, when some current passes through the ground wire).
Is it necessary to have a ground for 240 volts?
Circuits using 240 volts have two hots and a ground. There is no such thing as a neutral. For example, if the appliance (such as a dryer) requires 120v for its light and blower motor, there are two hot wires, a neutral (for the 120v requirements), and a ground.
Is it possible for you to touch the neutral bus bar?
Unless your grounding and bonding are incorrect, touching the neutral bus in a main panel is not a dangerous practise. In this case, it is equivalent to touching the panel cover or any exposed copper pipe. Although it is possible to accidently contact the neutral bus, it is also possible to unintentionally touch the hot bus. Turn off the primary circuit breaker!
What is a subpanel, and how does it work?
Subpanels are smaller service panels that are responsible for distributing electricity to a specified region of the house or to other structures on the property. On the surface, it’s just another satellite circuit breaker panel, but it has its own set of breakers and is often located in a location that is handy to the region it serves.
Is it necessary to have a ground rod for a subpanel in a detached garage?
It doesn’t matter if there are three or four wires feeding a detached building with a subpanel; each ground rod is required for that structure. The soil is a terrible conductor of electricity.
What is the maximum distance between a ground rod and a panel?
Install the rod at a place that is close to the electrical distribution panel. If a grounding rod is placed too near to a building’s base, it has the potential to cause interference. In order to avoid this, it is recommended that you keep it at least 2 feet (0.61 m) away from the building’s side walls.
